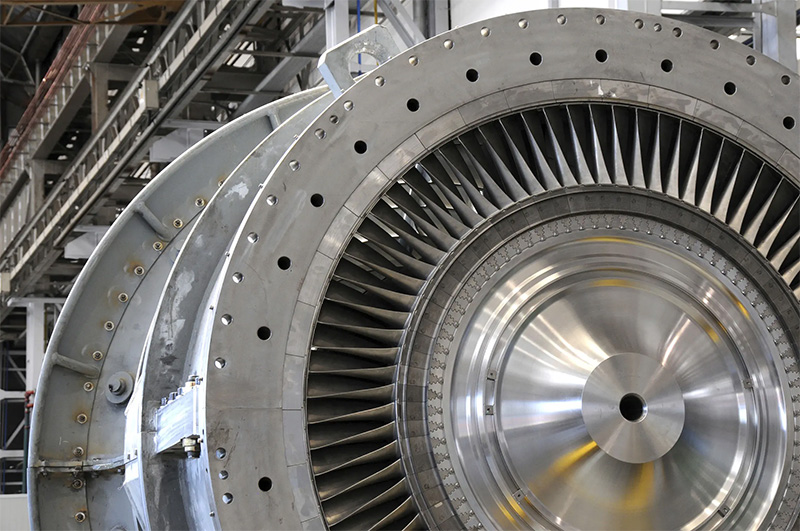

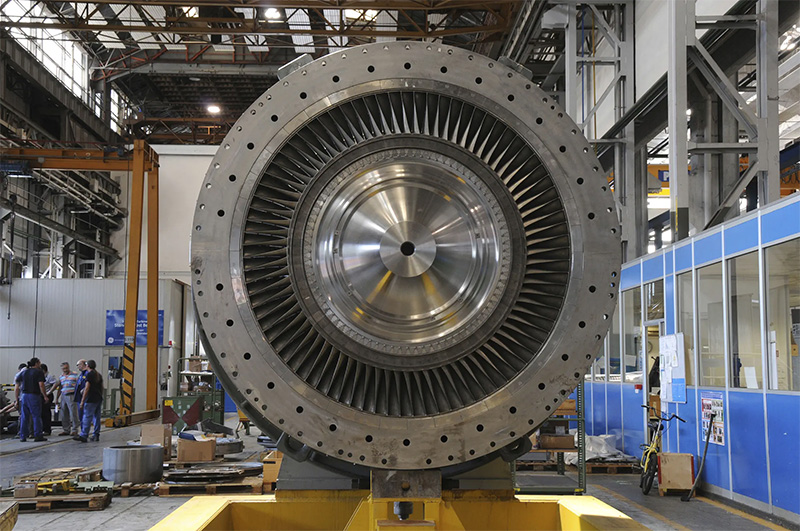

Baker Hughes Gas turbine Frame 5/2C

Two-shaft gas turbine with best-in-class availability and reliability in mechanical drive Benefits Excellent availability and reliability: compact mover, designed for long life and ease of maintenance Enhanced fuel flexibility with no impact on combustor operability or integrity Features 16-stage axial compressor adopted on former Frame 5/2B and derived from Frame 5/1N 12 combustion chambers, dual-fuel DLN1 combustion system available, two-stage turbine with uncooled buckets Two-shaft turbine (high pressure and low-pressure turbines) with variable geometry nozzles between HPT and power turbine Applications LNG Pipeline, gas storage Refinery, petrochemical, fertilizer Overview We have more than 260 units operating around the world with over 25.7 million fired-hours experience. Our first commercial unit has successfully exceeded 200,000 operating hours. At ISO conditions with natural gas fuel, ambient temperature 15°C, no inlet exhaust losses, sea level, 60% relative humidity. Combustion inspection (CI), and liner and transition piece inspection (LTPI) can be performed at site. Package dimensions exclude driven equipment. Fuel flexibility and composition Our Frame 5/2C is capable of operating with a variety of fuel gases, with no combustor operability or integrity issues. It can burn heavy hydrocarbons (25% max ethane content or 20% max propane), inerts (25% max CO2 or 25% max N2), and hydrogen up to 20%. Frame 52C Flexibility Power crystal for power increase An additional 6% of power with lower maintenance intervals can be provided on the standard, LHE, and DLN1 configurations with no hardware modifications.
