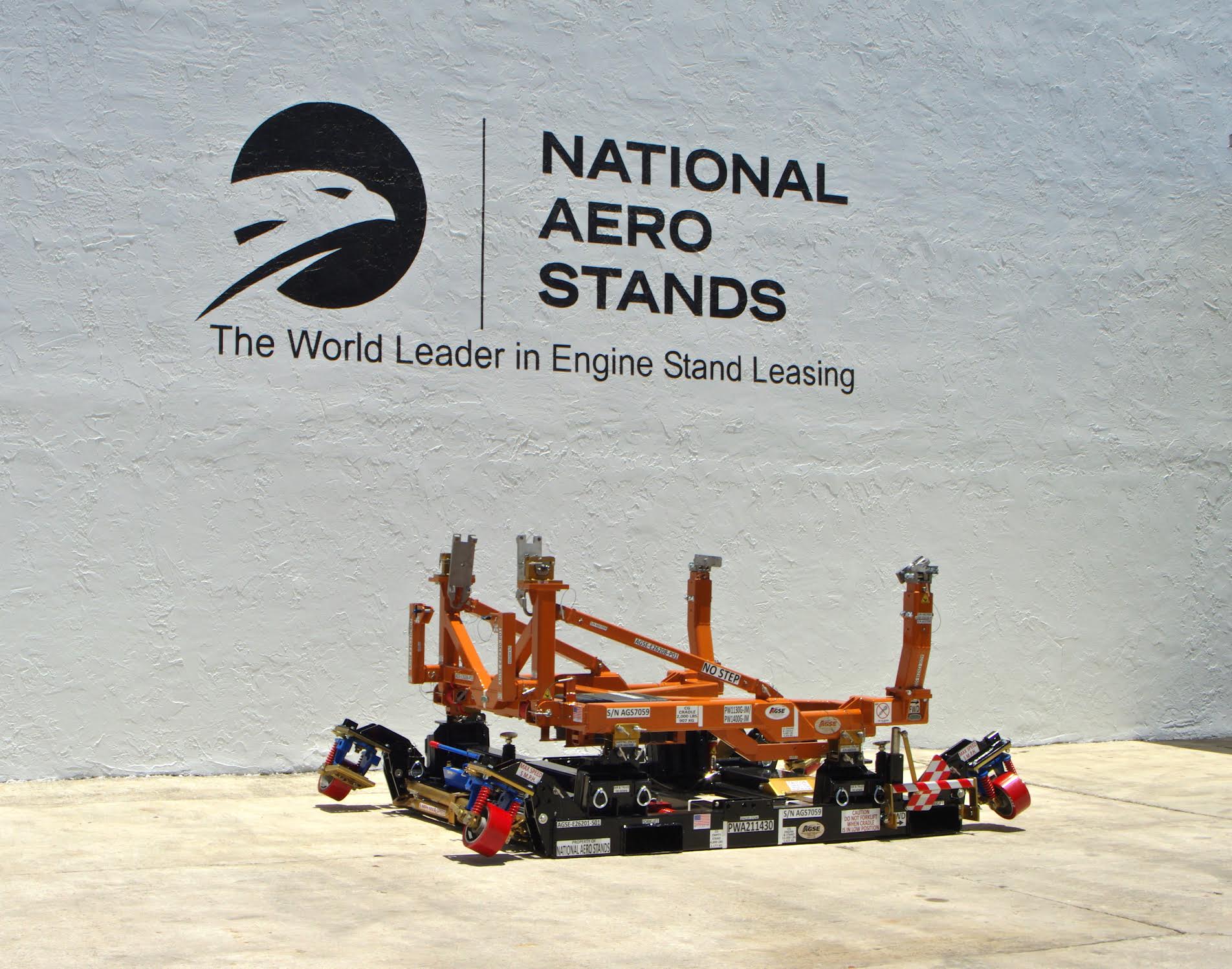

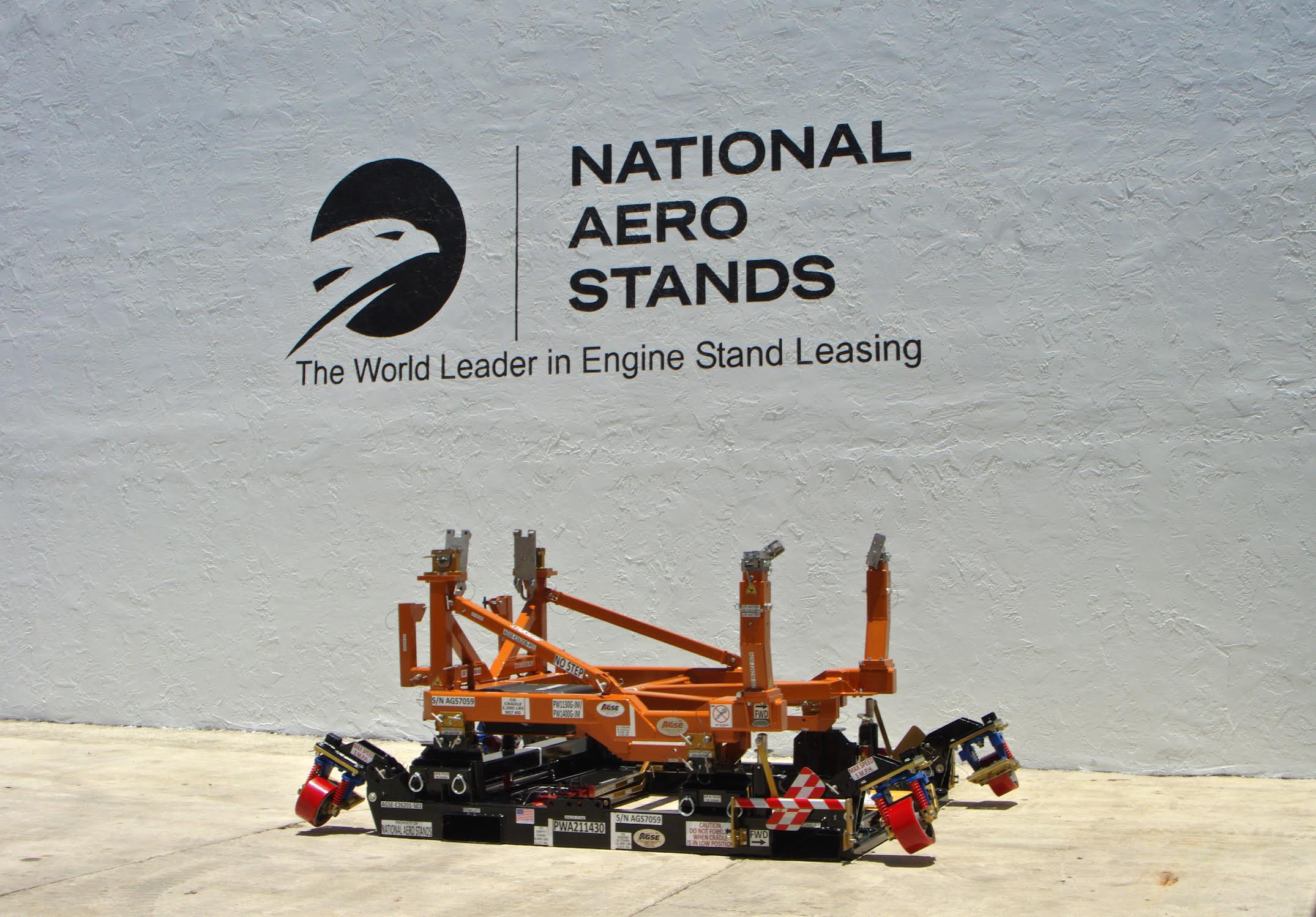

Getting to Know Engine StandThe AGSE Engine Stand PW1100 represents a state-of-the-art solution specifically engineered for the Pratt & Whitney PW1100G-JM engine, which powers the Airbus A320neo family. This robust stand combines superior engineering with practical functionality, making it an essential tool for engine maintenance, transportation, and storage operations. Constructed from high-strength steel and aluminum, it delivers exceptional durability while maintaining optimal handling characteristics.

Features and Applications Engine StandThis versatile engine stand excels in both operational efficiency and safety features. Its innovative design incorporates eight shock-absorbing mounts between the cradle and trolley, ensuring superior vibration isolation during transport and handling. The stand facilitates seamless on-wing engine removal and installation through bootstrapping methods, while its swiveling caster double wheels provide enhanced maneuverability in tight spaces.

Technical Specifications Engine StandThe stand’s thoughtful design prioritizes both functionality and space efficiency. Its stackable configuration optimizes storage space in maintenance facilities, while the robust construction ensures safe handling of the engine during all maintenance procedures. The stand interfaces seamlessly with fan frames and turbine rear frames, providing stable support for various maintenance operations. Compatible with both standard aircraft and truck transportation methods, it meets all industry safety standards while maintaining operational flexibility.

Weight Capacity: Designed for PW1100G-JM engine
Total Weight: 5,665 lbs with caster wheels
Length: 367-393 cm
Construction: High-strength steel and aluminum
Shock Absorption: 8 mounts between cradle and trolley
Wheel Type: Swiveling caster double wheel
Maximum Towing Speed (Loaded): 5 MPH (8 km/h)
Maximum Towing Speed (Empty): 10 MPH (24 km/h)
Ground Clearance: 4.4″ (111 mm)
Compatibility: Standard aircraft and truck transportation
Special Features: Stackable design, Bootstrapping capability
Part Numbers: PWA211430, PWA111491, D71STA00022G03
