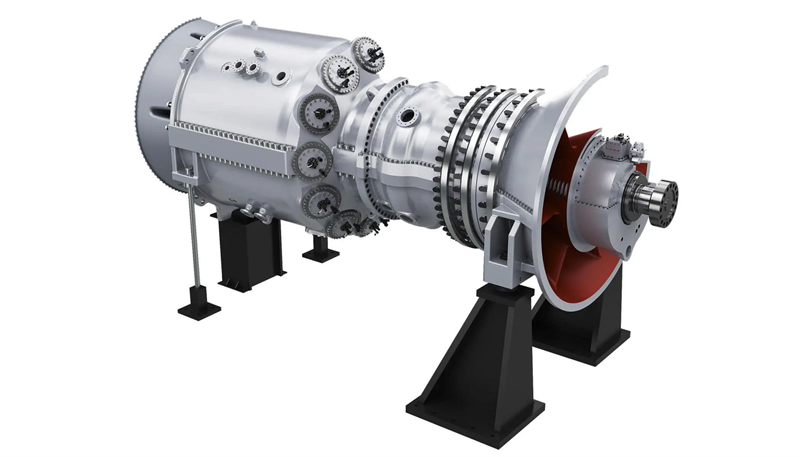

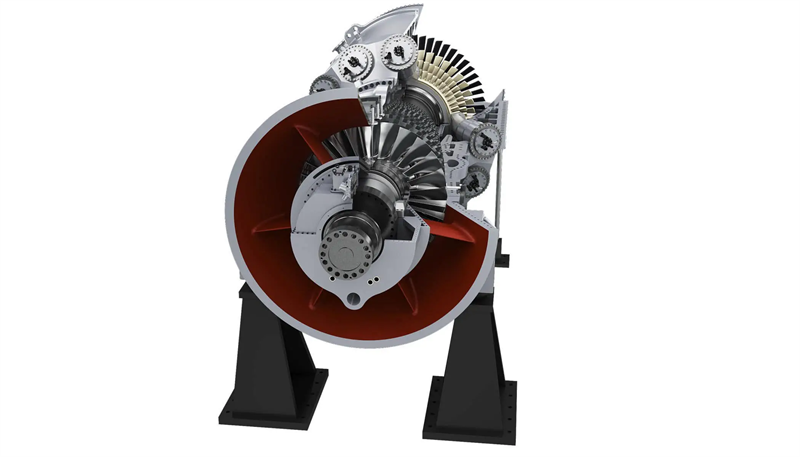

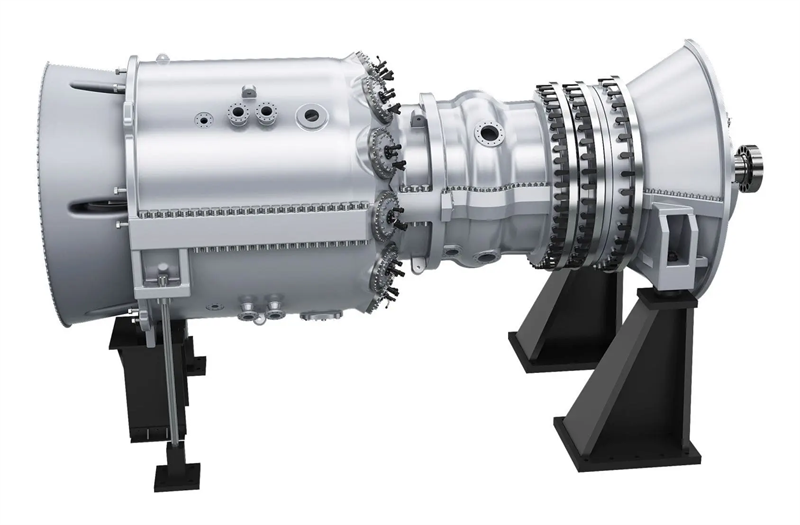

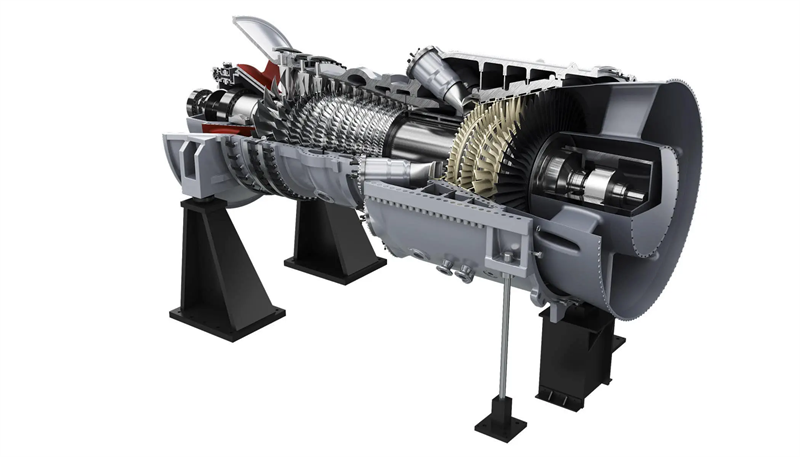

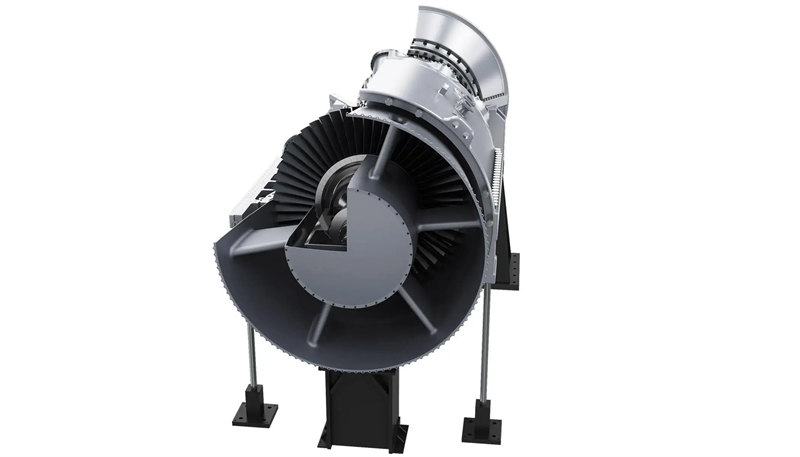

Siemens gas turbine SGT5-9000HL

Brand：Siemens Gas Turbine Model：SGT5-9000HL

Take efficiency and performance to new heights
Simple Loop Output (ISO)
Combined cycle efficiency:>64%
Originating from mature H-class gas turbine technology
The next generation of advanced air-cooled gas turbines
Our HL class gas turbines are paving the way for higher levels of efficiency and performance.
Our HL class gas turbines are paving the way for higher levels of efficiency and performance. The next generation of advanced air-cooled gas turbines originates from the evolution and development steps of validated H-class technology, using a series of new but tested technologies such as ultra efficient internal cooling for blades or blades and advanced combustion systems to increase firing temperature.
result:
The technology carrier with a combined cycle efficiency exceeding 64% has taken it to the next level, and the mid-term goal is to achieve higher efficiency. The HL class consists of two engines: SGT5-9000HL at 50 Hz and SGT6-9000HL at 60 Hz.
Quick start capability
Due to the lightweight rigid rotor with internal cooling air channels and the free thermal expansion of rotor and shell components during transients, gas turbines are capable of achieving world-class cold start and hot start capabilities. Hydraulic clearance optimization (HCO) actively controls clearance to ensure robustness during startup and reduce performance degradation. The heating rate of the gas turbine is 85 MW/min.
Advanced Efficient Combustion System (ACE)
Advanced annular combustion systems with dual fuel functionality can achieve higher combustion temperatures and greater operational flexibility. 25 premixed burners have improved the mixing of fuel/oxygen. The ACE combustion system allows the gas turbine to be regulated to a minimum environmental load of 21%.
