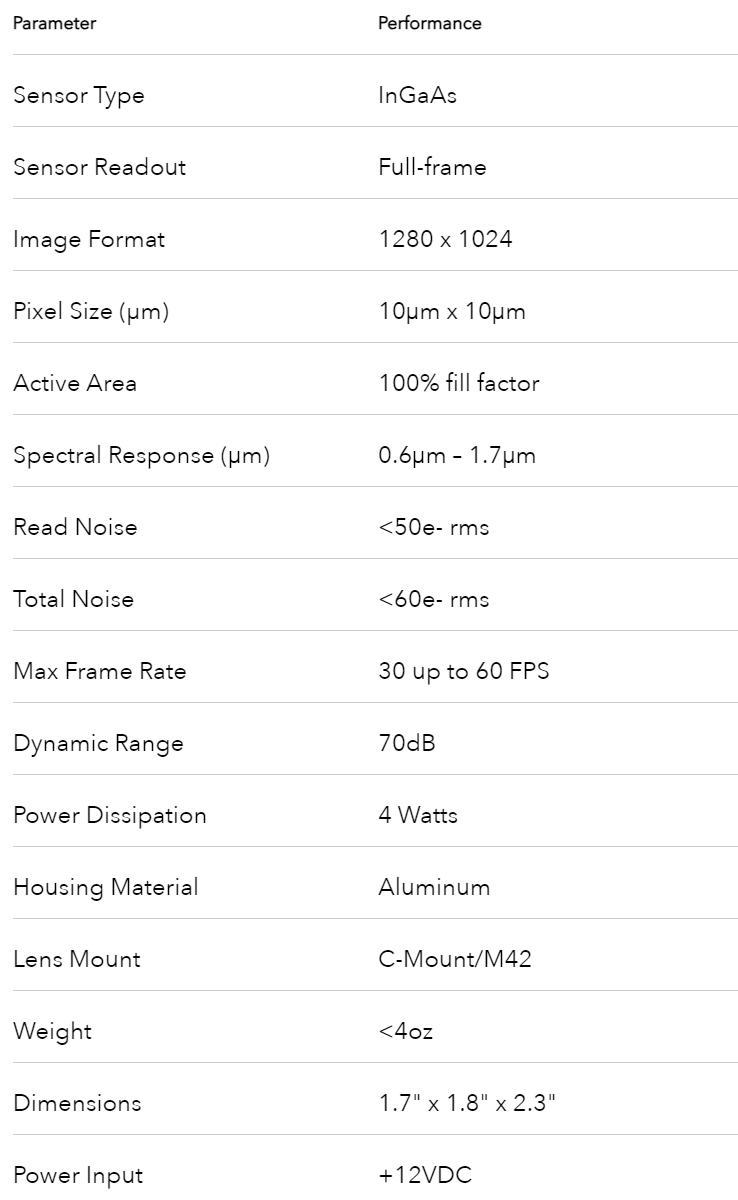

The Altair 13A-E, powered by SCD’s Cardinal sensor platform, is a low noise camera with extended spectral range from 0.6μm to 1.7μm. The camera uses SCD’s latest 1280 x 1024 format InGaAs detector with 10μm pixel pitch. The advanced digital ROIC provides advanced programmable on-chip features and very low noise performance.

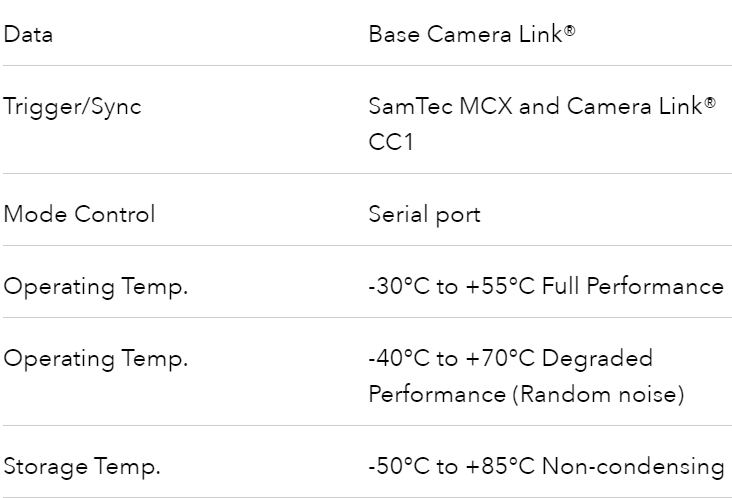

The camera features Automatic Gain and Exposure Control to optimize image quality over a wide range of imaging conditions. A proprietary non-uniformity correction NUC provides nonuniformity correction over the -40°C to +70°C operating range with full performance from -30°C to +55°C. The camera has a TEC to cool the focal plane for low light-level imaging. On-board Correlated Double Sampling (CDS) delivers dynamic range of up to 70dB and low read noise <50 rms electrons for low-light operation.
A key feature of the FPA is on-chip digital Asynchronous Laser Pulse Detection (ALPD) that is enabled by proprietary circuitry on the FPA. ALPD provides a full-frame two-dimensional capture and X-Y position of short duration laser pulses in both daytime and nighttime. Multiple asynchronous spots can be tracked in the same FOV. This capability is completely independent of imaging, assuring optimal imaging capability with laser pulse detection.
Yes, we retrofit legacy systems (e.g., GE Frame 5, Siemens V94.2) with modern digital controllers, typically completing hardware integration within 4-8 weeks. Software migration requires additional validation time.
We recommend annual performance testing under ISO 3977-2 standards. Critical applications (e.g., offshore platforms) may require semi-annual tests with emissions compliance checks.
All rad-hard devices (e.g., FPGA, ADC) are QML Class V certified under MIL-PRF-38535 and tested to MIL-STD-883 Method 1019 for SEU tolerance. Full qualification reports are available upon request.
Our ASICs and power management ICs operate across -55°C to +175°C ambient temperatures, with derating curves provided in military temperature range (MTR) datasheets.
Our PMA parts (e.g., actuators, sensors) hold FAA/EASA Form 1 certification and match OEM form/fit/function. Installation requires SB/MB documentation per FAA AC 23.1529.
All NAS/MS fasteners include full DNA traceability: melt source (AMS 2301), heat/lot numbers, and AS9100-compliant MTRs with ultrasonic test reports.
AOG orders ship within 4 hours for stocked items (FAA-PMA, EASA Part 21G). Non-stock critical parts trigger priority manufacturing with 72-hour max turnaround.
