PW4000-100

Product Details

FAQs

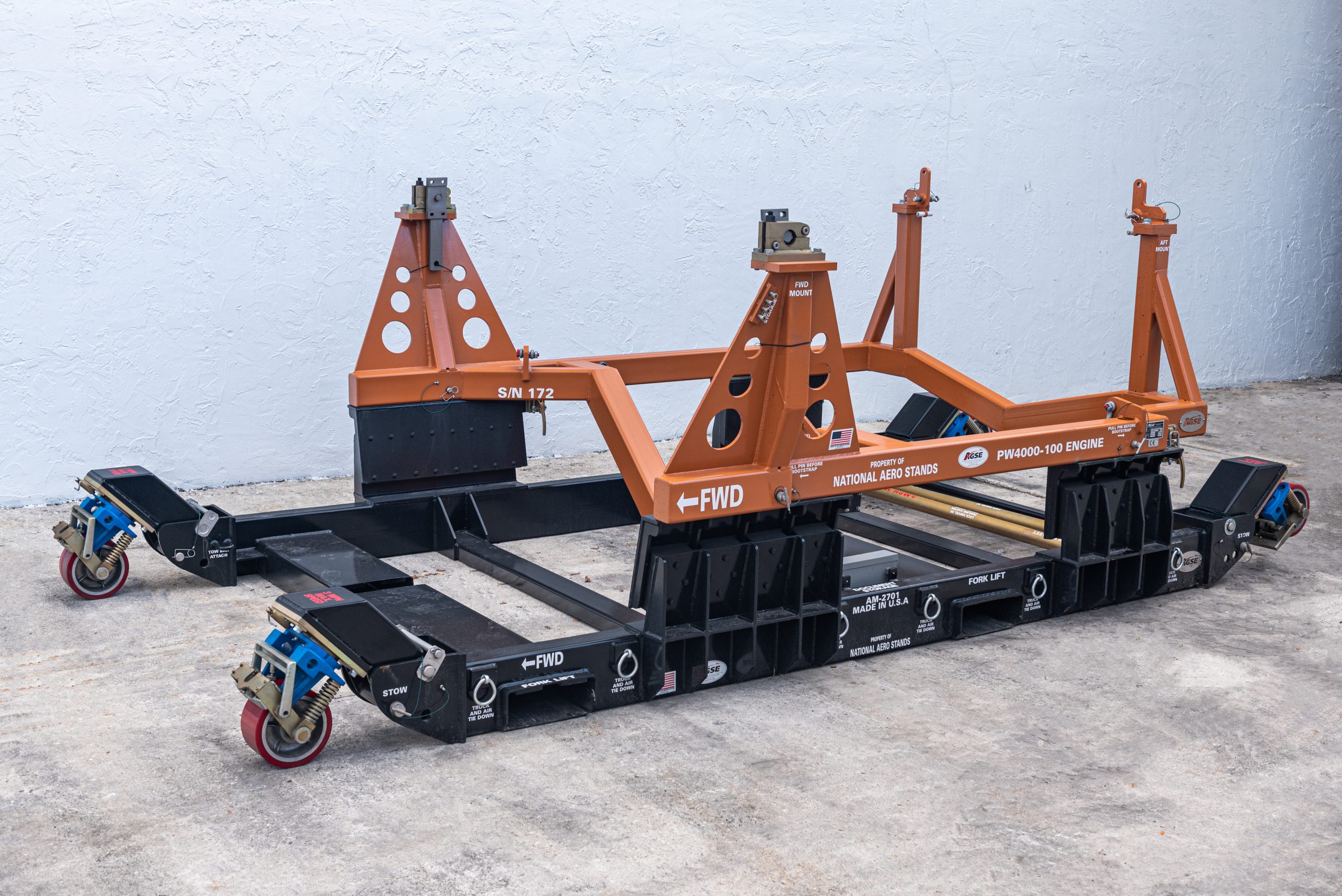

Getting to Know Engine StandThe AGSE Engine Stand PW4000-100 represents a pinnacle of aviation ground support equipment, specifically engineered for the safe handling and transportation of Pratt & Whitney’s PW4000-100 series engines. This robust stand combines superior engineering with practical functionality, featuring a modular design with a detachable cradle (AM-2700) and base (AM-2701). The stand’s versatile configuration accommodates various engine models within the PW4000 family, making it an invaluable asset for maintenance facilities and airlines.

Features and Applications Engine StandThis premium engine stand excels in both stationary support and transportation scenarios. Its innovative design incorporates shock-absorbing mechanisms through integrated mounts and retractable casters, ensuring optimal protection during engine handling. The stand features high-capacity polyurethane wheels (5″ x 10″) rated at 5,000 lbs per caster, complete with braking systems and swivel locks for secure positioning. For enhanced durability, the structure is protected by Skydrol-resistant enamel paint and includes corrosion-resistant hardware throughout.

Technical Specifications Engine StandThe stand’s adaptable design accommodates different PW4000-100 series engine variants with precise dimensional configurations. When configured for PW4164/PW4168 engines, it maintains a centerline height of 64.5 inches (164 cm), while the PW4168A setup positions at 64.75 inches (164 cm). The structure incorporates forklift accessibility from both sides and features strategic tie-down points for secure transportation. A convenient document storage compartment is integrated into the design, ensuring important paperwork stays with the equipment.

Part Numbers: AM-2700 (Cradle), AM-2701 (Base)
Maximum Towing Speed: 3 MPH
Caster Capacity: 5,000 lbs per caster
Wheel Specifications: 5″ wide x 10″ diameter polyurethane tread
Dimensions with PW4164/PW4168:Length: 210″ (533 cm)
Width: 117″ (297 cm)
Height: 118″ (300 cm)
Engine Centerline Height: 64.5″ (164 cm)
Total Weight: 15,550 lbs (7,053 kg)
Dimensions with PW4168A:Length: 210″ (533 cm)
Width: 123″ (312 cm)
Height: 119″ (302 cm)
Engine Centerline Height: 64.75″ (164 cm)
Total Weight: 15,850 lbs (7,189 kg)
Stand Without Engine:Length: 198″ (503 cm)
Width: 114″ (290 cm)
Height: 70″ (178 cm)
Base Weight: 3,900 lbs (1,769 kg)
