CFM56-7B

Product Details

FAQs

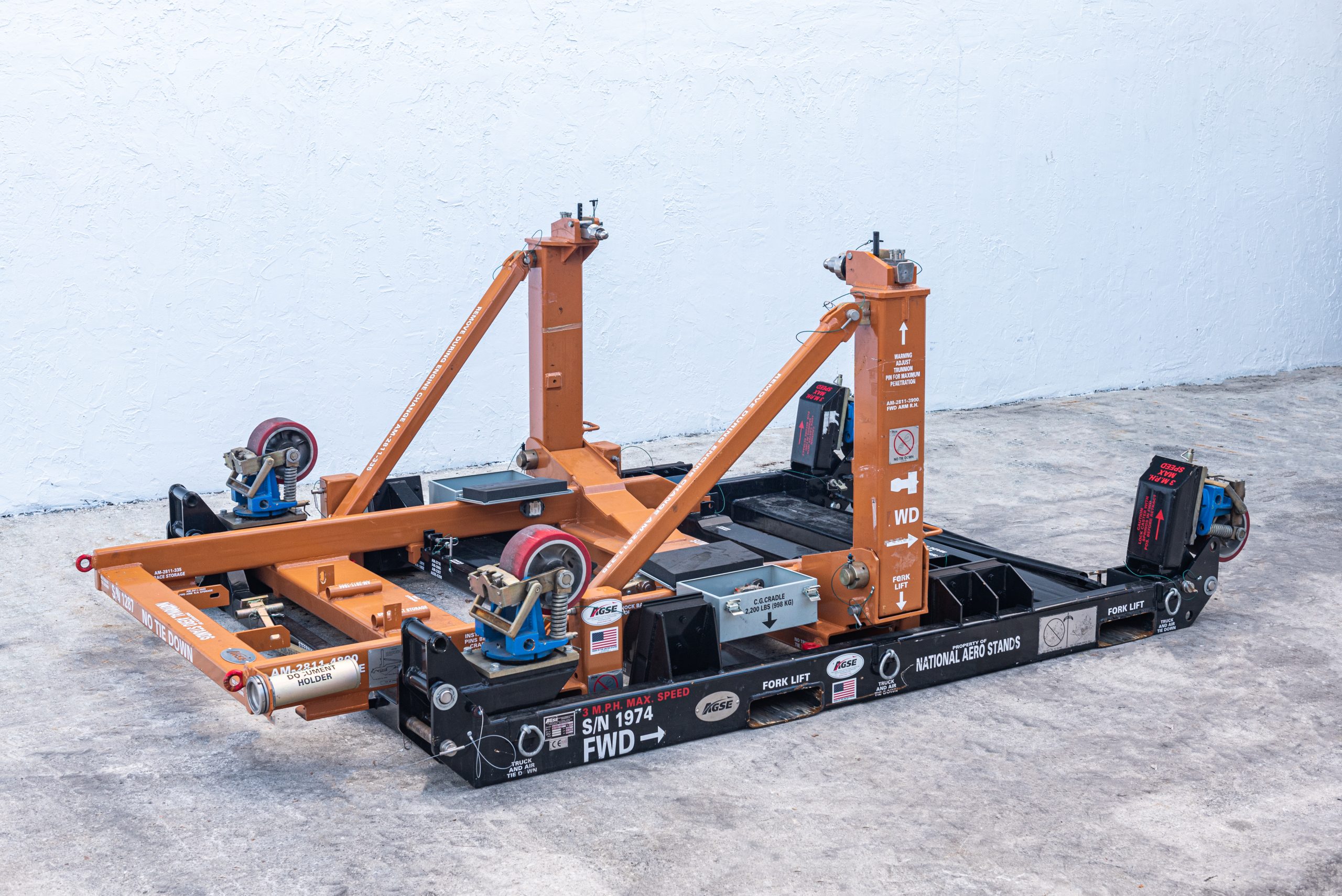

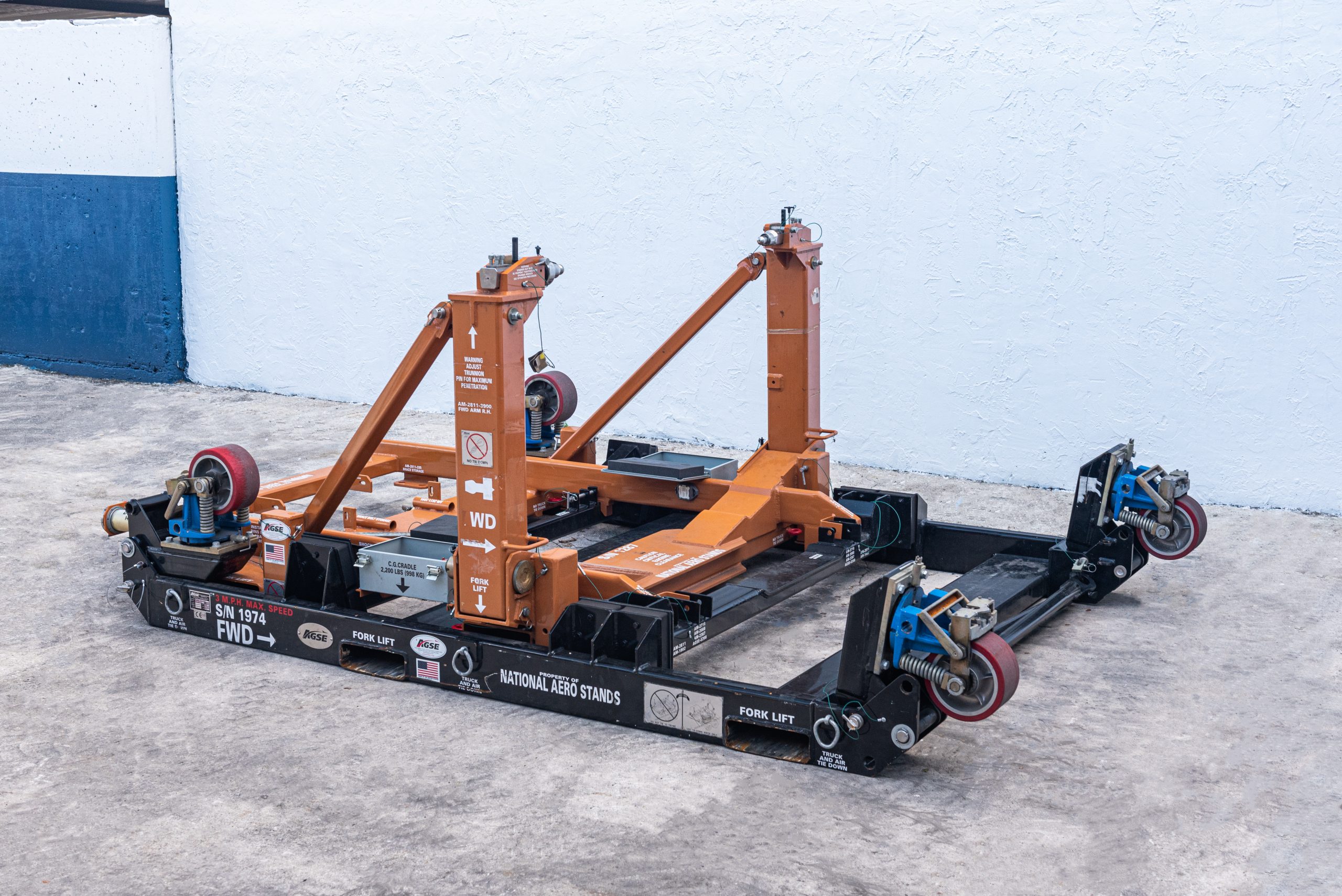

Getting to Know Engine StandThe AGSE Engine Stand CFM56-7B represents the pinnacle of aviation ground support equipment, specifically engineered for the safe handling and transportation of CFM56-7B aircraft engines. This low-profile shipping stand combines robust construction with innovative design features to ensure secure engine handling across various transportation modes. Its precision-engineered framework demonstrates AGSE’s commitment to quality and reliability in the aerospace industry.

Features and Applications Engine StandThis versatile engine stand excels in both functionality and practical application. Its bootstrap capability facilitates seamless on-wing engine removal and installation, while the removable palletized base enhances operational flexibility. The stand’s dual-sided forklift accessibility streamlines handling procedures, and external shock mounts effectively minimize vibration during transport. The integration of four shock-absorbing retractable casters, each rated at 5,000 lbs capacity, ensures stable movement during ground operations.

Technical Design and ConstructionBuilt with a steel welded frame and tubular support arms, this engine stand exemplifies durability and structural integrity. The corrosion-resistant pins and hardware, protected by Skydrol enamel coating, guarantee longevity even in demanding environments. The rotatable forward cradle arms optimize engine installation procedures, while the comprehensive tie-down system ensures secure transport. The stand’s thoughtful design maintains a low profile while accommodating the full dimensions of the CFM56-7B engine, making it an ideal solution for both storage and transportation needs.

Part Number: AGSE-E207-G01
Maximum Towing Speed: 3 MPH (5 KM/H)
Wheel Specifications: 5″ x 10″ polyurethane tread
Caster Capacity: 5,000 lbs (2,268 kg) each
Height without Engine: 59″ (150 cm)
Height with Engine: 82″ (208 cm)
Width: 96″ (244 cm)
Length: 129″ (328 cm)
Stand Weight: 3,684 lbs (1,671 kg)
Total Weight with Engine: 8,837 lbs (4,008 kg)
Frame Construction: Steel welded with tubular support arms
Surface Protection: Skydrol enamel coating
Safety Features: Caster brakes, swivel locks, tie-down rings
Special Features: Bootstrap capability, removable palletized base
