Pico640Gen2 - Infrared Detector

Product Details

FAQs

Features

Pico640:

Detects fast moving objects
High quality image with low noise - NETD < 50 mK (F/1, 300 K, 30 Hz )
Array operability (> 99.5 %)

Pico640+:

Detects fast moving objects
High quality image with low noise - NETD < 40 mK (F/1, 300 k, 30 Hz )
Array operability (> 99.8 %)

Applicable to both sensors:

Fluid and smooth image (Frame Rate : 1 output up to 60 Hz / 2 outputs up to 120 Hz)
Low power consumption (< 130 mW)
Reliability (MTTF >15 yrs / 10 yrs vacuum life)
Operability 24/7 (in all weather conditions)
MIL Standard qualified (STD-810 and 883), TWS qualified
Seamless integration (Compatible with Pico384P/E)
Simplified image Processing

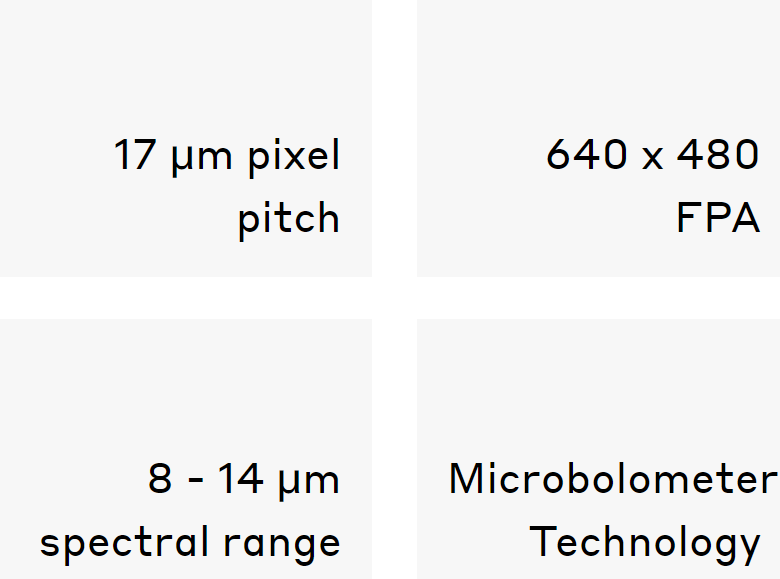

Description

The thermal image sensor, Pico640Gen2 will exceed your most demanding requirements.

Operating in the LWIR spectral range, the PicoGen2 gives system integrators a unique addition to their development toolkits. It is built on proven Lynred technology, it is easy to integrate, limits development costs and speeds time to market - for truly competitive end products.

Pico640Gen2 is well suited to manufacturers of extended range surveillance cameras (used in border protection/control and aerial mapping) as well as scientific grade cameras.

Documentation

Pico640Gen2 Data Sheet
